MATERIALS
•
AISI 304 stainless steel, zinc plated steel, aluminium
bronze and zamak hinges
•
Zamak silver coated main locking kit
•
Polyamide raiser
•
Stainless steel screws and grub screws
SURFACE COATING
•
White powder coated handle RAL 9016
•
Black powder coated handle RAL 9005
•
Silver powder coated handle RAL 9006
•
Mill finish handles for special requests
CERTIFICATION
•
Corrosion resistance: >500h salt-spray test
•
Alumil 5 Year Guarantee

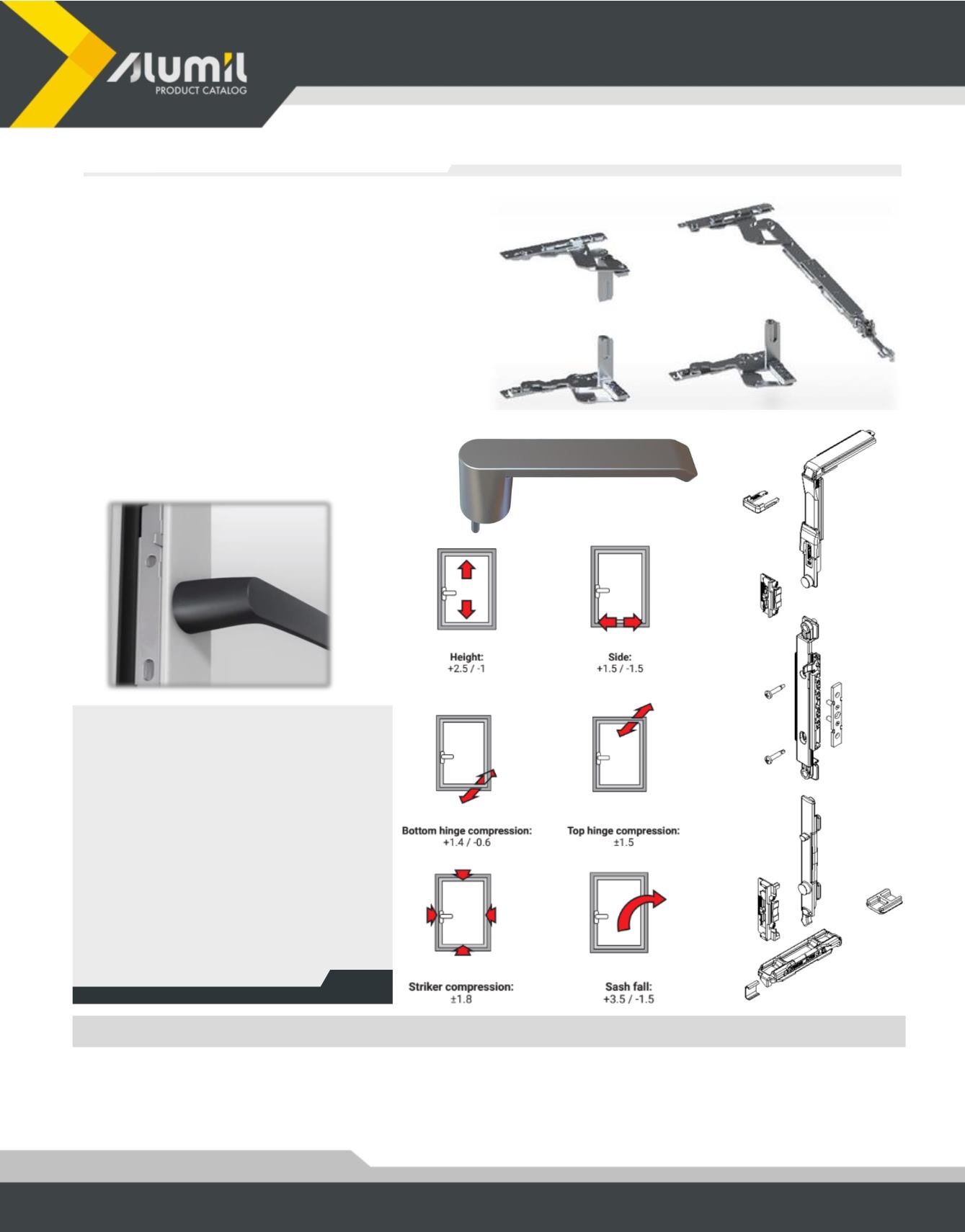

ALUMIL EURO GROOVE CONCEALED T/T MECHANISM 100KG
CODES & DESCRIPTIONS
EX-4053951000 SIDE HUNG GEAR TRANSMISSION FOR HANDLE WITHOUT ROSETTE
EX-4053952000 T/T GEAR TRANSMISSION KIT FOR HANDLE WITHOUT ROSETTE
EX-3808071900 ALUMIL HANDLE WITHOUT ROSETTE MILL FINISH
EX-3808071902 ALUMIL HANDLE WITHOUT ROSETTEWHITE
EX-3808071903 ALUMIL HANDLE WITHOUT ROSETTE BLACK
EX-3808071909 ALUMIL HANDLE WITHOUT ROSETTE GREY 9006
EX-4004354100 KIT OF CONCEALED HINGES FOR SIDE HUNG RIGHT
EX-4004354200 KIT OF CONCEALED HINGES FOR SIDE HUNG LEFT
EX-4004355100 KIT OF CONCEALED HINGES FOR TnT T1 470-640mmRIGHT
EX-4004355200 KIT OF CONCEALED HINGES FOR TnT T1 470-640mm LEFT
EX-4004356100 KIT OF CONCEALED HINGES FOR TnT T2 601-1500mm RIGHT
EX-4004356200 KIT OF CONCEALED HINGES FOR TnT T2 601-1500mm LEFT
EX-4004762000 ADDITIONAL STAY ARM
EX-4006892000 SET FOR EXTRA LOCKING POINT
FUNCTION
Concealed tilt/turn mechanism for all Alumil euro groove systems suitable
for tilt/turn, side-hung and bottom hung openings
TECHNICAL FEATURES
•
Available for side-hung and tilt/turn single and double sash windows
•
Tilt/turn hardware system:
- Sash width from 470 to 1500mm
- Sash height from 600 to 2500mm
•
For width>1000mm an additional arm is required
•
For width>1000mm and height>1200mm additional locking is required
•
Micrometric and independent 3D adjusting system
•
Standard 1 sash kit with WOSD on gearbox and top and bottom locking
•
Standard concealed hinges for casement windows and second sash
•
Modern pin handle with no base/rosette with Alumil patented design
and logo. Available also in mill finish for special colors
•
180° window opening
•
100kg window capacity
