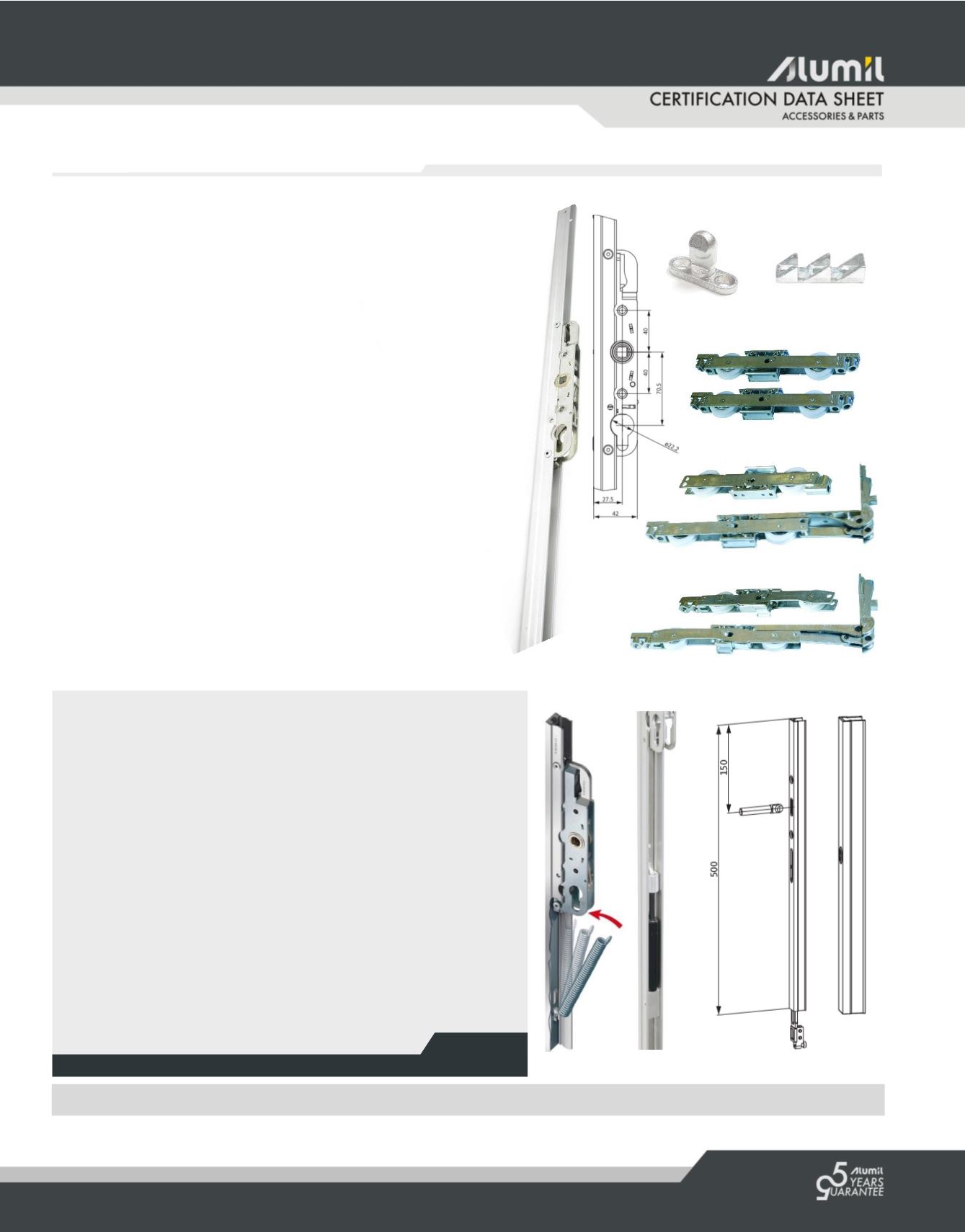

Additional heavy duty
version rollers (<400kg)
Heavy duty version rollers (<300kg)
Tension
spring
Handle
dampener
Gear extension
with locking point
Ventilation
locking plate
Gear
Gear cover
extension
Locking plate
Standard version rollers (<200kg)
MATERIALS
•
Hardware components manufactured from high-quality steel, Zamac die-casting
and aluminium alloys
•
The steel components consist of stainless alloys
SURFACE COATING
•
Zamac die-casting components, as locking components and runners, are subjected
to bichromating surface-treatment and additional silver-colored coating
•
Aluminium parts are silver anodized
CERTIFICATION
•
Durability: Grade 5 - 25,000 test cycles [EN 13126-16:2008-04]
•
Corrosion resistance:
- Hardware set: Grade 5 - >480h salt-spray test [EN 13126-16:2008-04]
- Individual zinc die-cast component with bichromating treatment: Grade 5 -
>1,000h salt-spray test [EN 1670, EN 9227 based on EN 13126-1:2011]
•
DIN EN ISO 9001:2008
•
In accordance with the REACH regulation (1907/2006/EG) regarding SVHC
substances
•
RC 2 Tested according to DIN EN 1627
•
Alumil 5 Year Guarantee
Part numbers, descriptions and application ranges are depicted in the corresponding hardware catalogue and installation drawings.
FUNCTION
Alumil branded lift/slide hardware for all Alumil lift/slide systems providing smooth
and quiet movement of sliding sashes and enhanced security.
TECHNICAL FEATURES
•
Available in two basic versions based on sash weight to cover all Alumil’s range
needs:
- Standard version: sashes up to 200kg
- Heavy duty version: sashes up to 300kg (up to 400kg with the use of
additional rollers)
•
Two point locking as standard. A third locking point is also available and
concealed on the gear if required
•
Gears in four different lengths to cover from small sized sliding windows to big
sized sliding doors
•
Gear backset is 27.5mm
•
Gears can accommodate profile cylinders for enhanced security
•
Extensions of 500mm are available in two versions, both with integrated locking
point and without locking point for aesthetics
•
Combined with Alumil 10mm pin handle
•
Special locking plate for ventilation
•
Tension spring available for smoother lifting of heavy sashes (>200kg).
Retrofitting is possible
•
Handle dampener available for smoother and safer lowering of the sash.
Prevents high speed strike back of the handle. Recommended for sashes >100kg.
Mainly used as a child safety device. Retrofitting is possible
•
Sash width from 700 to 3.300mm
•
A third light-weight version is also available for sashes up to 90kg. Two locking
points only, with no gear extension and profile cylinder option available and for
widths up to 1.900mm. Combined with Alumil 7mm pin long handle
•
Alumil branded
CODES & DESCRIPTIONS
ALUMIL LIFT/SLIDE MECHANISM
