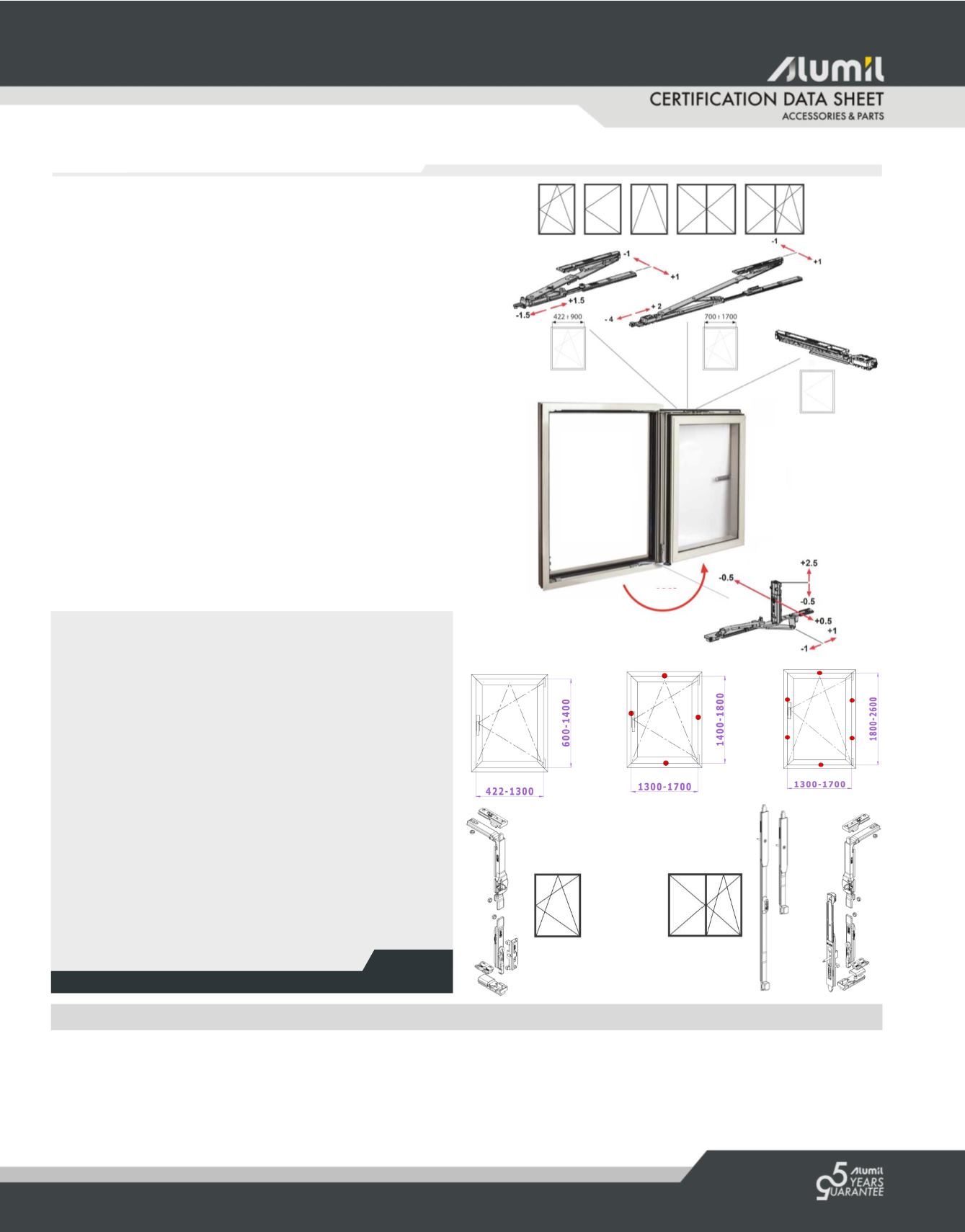

FUNCTION
Concealed tilt/turn mechanism for all Alumil euro groove systems
suitable for tilt/turn, side-hung and bottom hung openings
TECHNICAL FEATURES
•
Available for bottom hung, side-hung and tilt/turn single and double
windows
•
Tilt/turn hardware system
- Sash width from 422 to 1700mm
- Sash height from 600 to 2600mm
•
180° window opening
•
180kg window capacity
•
Simple and intuitive assembly, with no drilling or template required
•
Patented 3D adjusting system
•
Special hinge design for strong clamping in closed position
•
Easy one-man sash hanging
•
Special hinges for bottom hung up to 160kg
•
Combined with Alumil 7mm pin handle
•
Standard 1 sash kit with WOSD on corner and top and bottom
locking points
•
Standard 2 sash kit with bottom shoot bolt
•
Extra shoot bolt for top locking if required
•
Extra locking points according to sash dimensions
MATERIALS
•
Arm levers in stainless steel AISI 304
•
Hinge levers in special galvanized steel
SURFACE COATING
•
No additional surface treatment
CERTIFICATION
•
Tilt/turn hardware durability testing: Grade 4 - 15,000 test
cycles in accordance with EN 13126-8:2006 (equivalent to
60,000 individual turn, tilt and lock operations).
•
Corrosion resistance: Hardware set: Grade 4 - >240h salt-
spray test [EN 13126-8:2006]
•
Tested in accordance with the requirements of the RAL-GZ
607/3:2009 Regulation by the German RAL institute
•
Passed the test “load-bearing capacity of safety devices” [EN
14351-1:2006-07]
•
DIN EN 1191:2013-04
•
Alumil 5 Year Guarantee
EX-4211200100 KIT CONCEALED HINGES 180KG STAY ARM 480-800 RIGHT EX-4211461000 SINGLE SASH BASIC T/T KIT
EX-4211200200 KIT CONCEALED HINGES 180KG STAY ARM 480-800 LEFT EX-4211462000 DOUBLE SASH BASIC T/T KIT WITH LOWER SECOND SASH LATCH
EX-4211201100 KIT CONCEALED HINGES 180KG STAY ARM 700-1700 RIGHT EX-9100002679 HANDLE MECHANISM (GEAR BOX) WITH PIN
EX-4211201200 KIT CONCEALED HINGES 180KG STAY ARM 700-1700 LEFT EX-4741500000 EXTRA TOP LATCH FOR DOUBLE SASH 215 MM
EX-4211204100 KIT CONCEALED HINGES 180KG OPENING RIGHT
EX-4211596000 ADJUSTABLE PIN FOR ADDITIONAL LOCKING
EX-4211204200 KIT CONCEALED HINGES 180KG OPENING LEFT
EX-3601597100 PIN KEEPER FOR ADDITIONAL LOCKING
EX-4211208000 KIT CONCEALED HINGES 120-160KG TILT BOTTOM HUNG EX-4211495000 CORNER TRANSMISSION FOR CONCEALED T/T MECH. 180KG
EURO GROOVE CONCEALED T/T MECHANISM 180KG
CODES & DESCRIPTIONS
14
180kg
180°
+
Extra locking points according to sash dimensions
