MATERIALS
•
Extruded aluminium main body and plates
•
Low friction internal plate
•
Anti-corrosion pin and other fixings
SURFACE COATING
•
White powder coating RAL 9010
•
Black powder coating RAL 9005
•
Silver satin anodized
CERTIFICATION
•
Cycle tested for 25.000 cycles according to norm CEN/TS
13126-9
•
Alumil 5 Year Guarantee
EX-3501609002

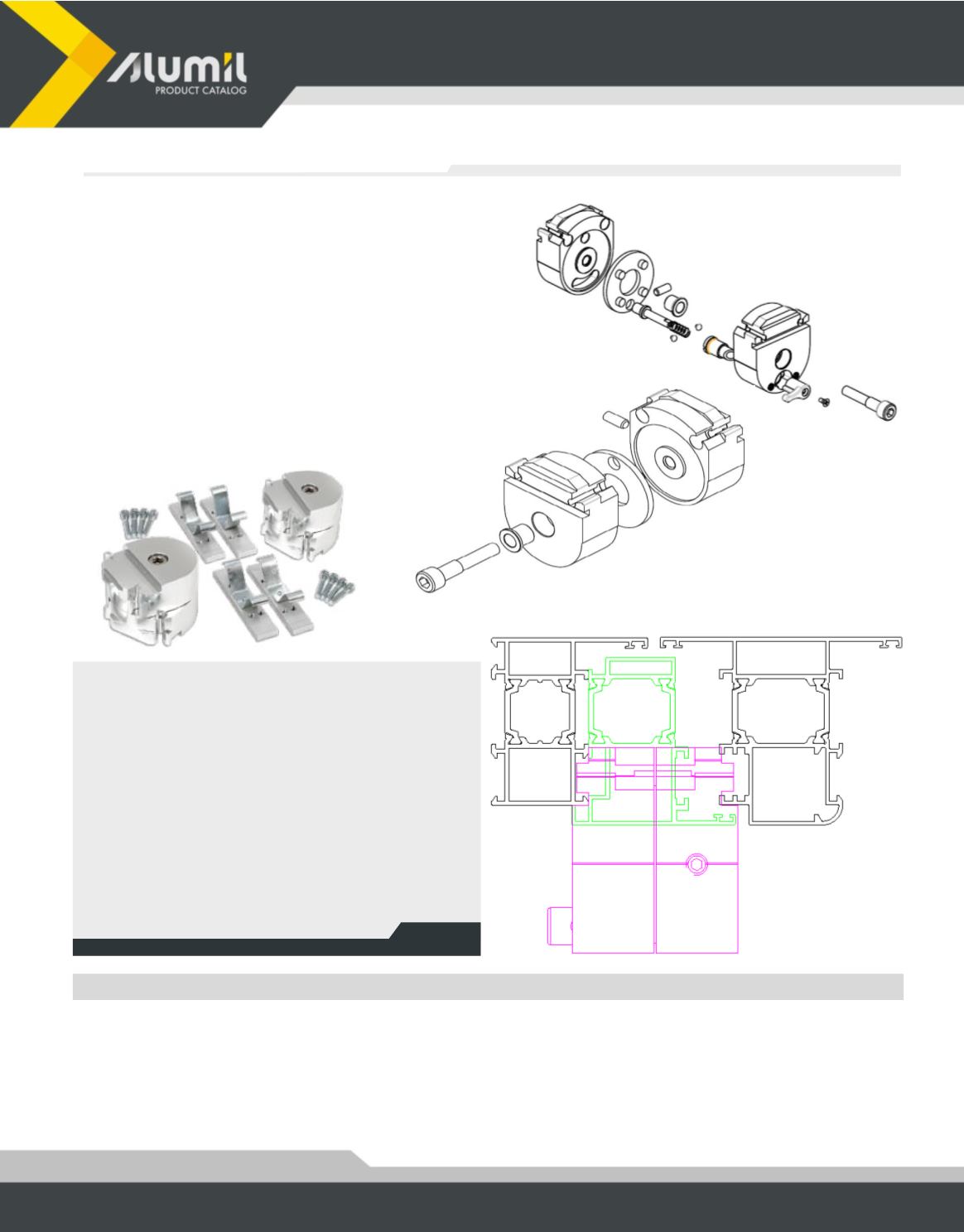

PAIR OF HORIZONTAL PIVOT HINGES FOR WINDOWS WHITE
EX-3501609003
PAIR OF HORIZONTAL PIVOT HINGES FOR WINDOWS BLACK
EX-3501609011
PAIR OF HORIZONTAL PIVOT HINGES FOR WINDOWS SILVER ANODIZED
CODES & DESCRIPTIONS
HORIZONTAL PIVOT HINGES
FUNCTION
Standard horizontal euro groove pivot hinges for opening windows
TECHNICAL FEATURES
•
Pivoting hinges allow minimum sash intrusion and maximum
opening
•
For sashes up to 80kg
•
Placement of hinges at the middle of the verticals
•
Lever allows for full opening or blocks the opening at 30
°
with
color indication
•
Packaged in pairs
•
Full opening allows for easy cleaning of the outside
•
Locking points may be used only below the hinge line
•
Hinges are not fitted on vertically pivoting windows
•
Tested for SMARTIA M15000 and SUPREME S77
