FUNCTION
Multi-point locking system for doors with additional locking points at top and bottom
for enhanced security
TECHNICAL FEATURES
•
Available in three versions according to locking type:
- Automatic latch bolts: When door is closed, the latch bolts automatically throw
20 mm and are secured to prevent them being forced back
- MR version: 2 massive deadbolts with horizontal locking manual movement for
protection against being sawn through
- P/R version: Adjustable mushroom cam / roller cam with vertical locking
manual movement for optimizing gasket pressure in the upper and lower area
thus providing better sealing
•
Comes in all standard hole distances, backsets and faceplate versions
•
Reversible latch, fully adjustable strikers
•
Extra codes for roller latch 35 and 45mm
•
Fully enclosed lock case for optimum protection
•
Automatic lock can be coupled with A-opener; nominal voltage: 12V AC / 12-24V DC
(stabilised)
•
Dimensions on drawing
a/b/c/d
are based on the descriptions below
MATERIALS
•
Hardware components manufactured from high-quality steel and Zamac
die-casting
•
Faceplate, strikers and latch & deadbolt strikers silver galvanized or
stainless steel
SURFACE COATING
•
Bichromating surface-treatment and additional silver-colored coating
•
Brushed stainless steel
CERTIFICATION
•
Interchangeability: [EN 14351-1] (tested by IFT Rosenheim; see
Hardware Certification Scheme QM 342 : 2014)
•
Fire and Smoke Protection: Approval [DIN 18250]
•
Durability: Grade S - 200.000 cycles 50N load on latch bolt and low-
maintenance locks [prEN 15685 : 2011]
•
Tested up to resistance class RC3 (by IFT Rosenheim)
•
Corrosion resistance:
- 240h [prEN 15685:2011]
- Individual test 500h salt spray [DIN EN 13126-1]
•
In accordance with the REACH regulation [1907/2006/EG] regarding
SVHC substances
•
Automatic latchbolts certified as Class A by the VdS (German Insurers'
Association)
•
DIN EN ISO 9001:2008
•
Alumil 5 Year Guarantee (2 Years on electric parts)
LOCK CODE
LOCK
MID STRIKER CODE
MID STRIKER
UP / DOWN CODE
EX-4400375100 DOOR LOCK SEC AUTOM 35/85/16 3 POINTS LATCH
EX-4220604000 / EX-4220604100 MIDDLE STRIKEPLATE 14/18 U20/6 LEFT / RIGHT
EX-4155100100
EX-4162903809 DOOR LOCK SEC AUTOM 35/85/20/3 3 POINTS LATCH
EX-4220604000 / EX-4220604100 MIDDLE STRIKEPLATE 14/18 U20/6 LEFT / RIGHT
EX-4155100100
EX-4400373100 DOOR LOCK SEC AUTOM 35/92/16 3 POINTS LATCH
EX-4220604000 / EX-4220604100 MIDDLE STRIKEPLATE 14/18 U20/6 LEFT / RIGHT
EX-4155100100
EX-4502903811 DOOR LOCK SEC AUTOM 35/92/20/3 3 POINTS LATCH
EX-4220604000 / EX-4220604100 MIDDLE STRIKEPLATE 14/18 U20/6 LEFT / RIGHT
EX-4155100100
EX-4154803100 DOOR LOCK SEC AUTOM 35/92/24/6 3 POINTS LATCH
EX-4153736700 / EX-4153736800 MIDDLE STRIKEPLATE U24/6 RIGHT / LEFT
EX-4155100100
EX-4502848400 DOOR LOCK SEC AUTOM 45/92/24/6 3 POINTS LATCH
EX-4153736700 / EX-4153736800 MIDDLE STRIKEPLATE U24/6 RIGHT / LEFT
EX-4155100100
EX-4403309300 DOOR LOCK SEC AUTOM 45/92/24/6 5 POINTS LATCH INOX EX-4153607220 / EX-4153607230 SINGLE PIECE STRIKEPLATE AUTO 5 U24/6 LEFT / RIGHT INOX -
EX-4405416100 DOOR LOCK SEC MR2 35/85/16 3 POINTS LATCH
EX-4220604000 / EX-4220604100 MIDDLE STRIKEPLATE 14/18 U20/6 LEFT / RIGHT
EX-4155100100
EX-4505411311 DOOR LOCK SEC MR2 35/92/20/3 3 POINTS LATCH
EX-4220604000 / EX-4220604100 MIDDLE STRIKEPLATE 14/18 U20/6 LEFT / RIGHT
EX-4155100100
EX-4505411711 DOOR LOCK SEC MR2 35/92/24/6 3 POINTS LATCH
EX-4153736700 / EX-4153736800 MIDDLE STRIKEPLATE U24/6 RIGHT / LEFT
EX-4155100100
EX-4503153110 DOOR LOCK SEC MR2 45/92/24/6 3 POINTS LATCH
EX-4153736700 / EX-4153736800 MIDDLE STRIKEPLATE U24/6 RIGHT / LEFT
EX-4155100100
EX-4504200300 DOOR LOCK SEC P/R 35/85/16 5 POINTS LATCH
EX-4220604000 / EX-4220604100 MIDDLE STRIKEPLATE 14/18 U20/6 LEFT / RIGHT
EX-4153593500 + 4159590100
EX-4403570700 DOOR LOCK SEC P/R 35/85/20/3 5 POINTS LATCH
EX-4220604000 / EX-4220604100 MIDDLE STRIKEPLATE 14/18 U20/6 LEFT / RIGHT
EX-4153593500 + 4159590100
EX-4504200100 DOOR LOCK SEC P/R 35/92/16 5 POINTS LATCH
EX-4220604000 / EX-4220604100 MIDDLE STRIKEPLATE 14/18 U20/6 LEFT / RIGHT
EX-4153593500 + 4159590100
EX-4163614400 ROLLER LATCH FOR SEC 35mm
EX-4156298600 CONCEALED CABLE DUCT AUTOMATIC A-OPENER
EX-4163614440 ROLLER LATCH FOR SEC 45mm
EX-4401815300 ELECTRIC MOTOR FOR SEC AUTOM DOOR LOCK
EX-4165597100 ACCESSORY FOR LATCH ROLLER 9/13mm EX-4400144000 FINGERPRINT SCANNER FOR SEC AUTOM LOCK

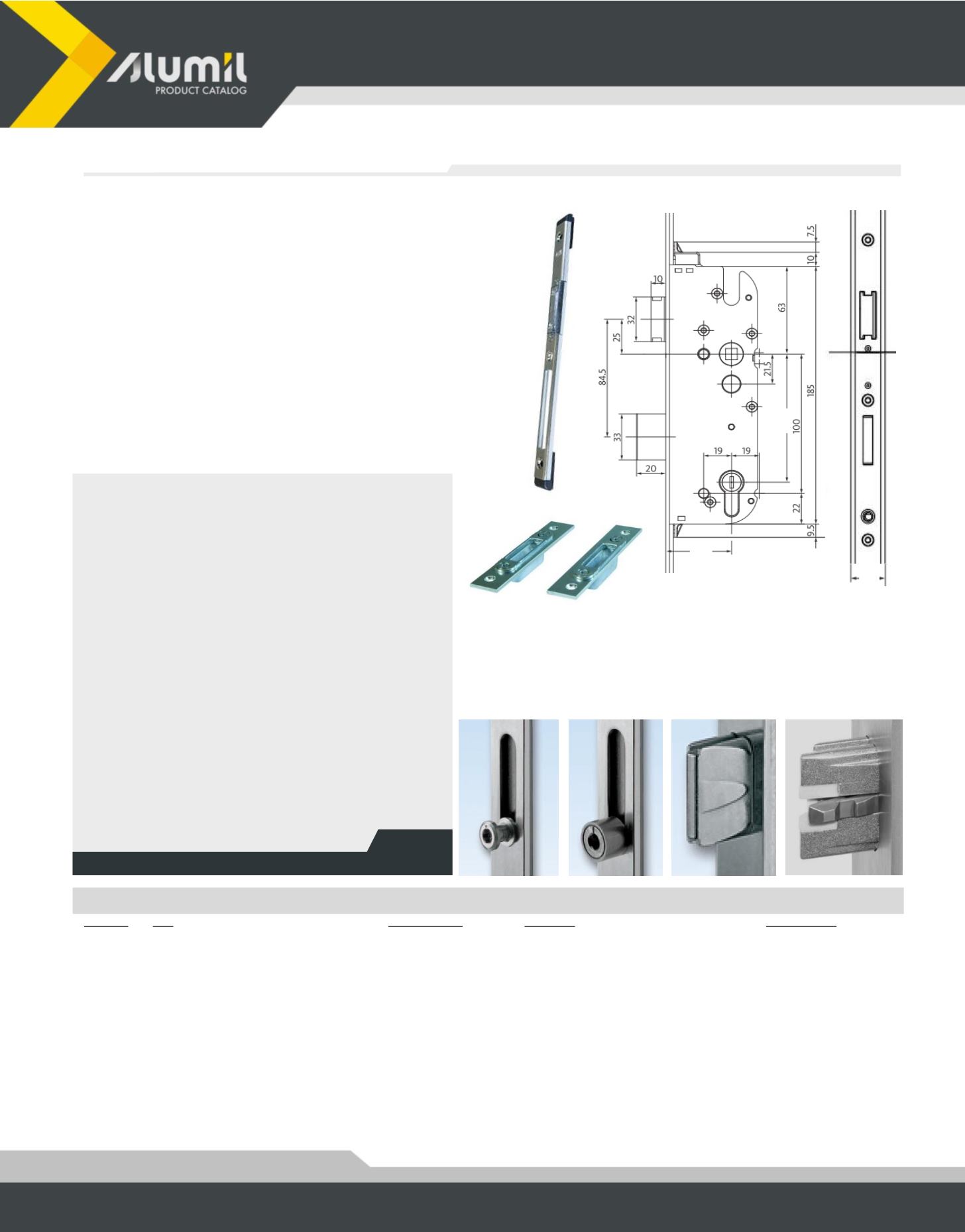

MULTI-POINT DOOR LOCKS
Adjustable mushroom cam /
Roller cam P/R (2 of each)
Automatic
latchbolt
Massive deadbolt
(MR2)
a
d
b
c
CODES & DESCRIPTIONS
35
EX-4153390503 COVER OF STRIKEPLATE FOR DEADBOLT MACHINING BLACK
