FUNCTION
Heavy duty horizontal and vertical pivot hinges for euro groove systems
TECHNICAL FEATURES
•
Available in both vertical and horizontal pivot versions
•
Convenient hardware adjustment:
- adjustable friction-brake integrated in horizontal & vertical pivot hinges
ensures a fixed opening angle even in windy conditions
- height adjustment +3mm (on vertical pivot-hinges)
- gasket pressure adjustment: ± 1 mm on all eccentric locking cams
•
180° rotation allowing for easy cleaning
•
Space saving solution with half the sash width swinging inwards
•
Vertical pivot fittings can be pivoted centrally or eccentrically
•
Horizontal pivot hinges are flush with the window in closed position providing
great aesthetics
•
Transfer rod movement for extra locking points
•
Please refer to technical drawings for complete application and machinings
•
Horizontal pivot hinges for sash widths 600-2800mm, sash heights 600-2200mm
•
Vertical pivot hinges for sash widths 600-1600mm, sash heights 600-2800mm
•
Hardware load-bearing capacity tested up to 175kg sash weight
•
Perfect fit for SUPREME S77 (only horizontal pivot) SMARTIA M11000 and
SMARTIA M15000
MATERIALS
•
Hardware components from high-quality steel and Zamac die-casting
•
Zamac pivot-hinge components are powder-coated
•
The steel components consist of stainless alloys
SURFACE COATING
•
White powder coating RAL 9016
•
Dark brown powder coating RAL 8022
•
Anodised silver in F1/EV1 surface-finish
•
Zamac die-casting components are subjected to bichromating surface treatment
and an additional silver-colored coating
CERTIFICATION
•
Durability [EN 13126-9:2013]:
- Grade 3 > 10.000 cycles (horizontal pivot hinges)
- Grade 4 > 15.000 cycles (vertical pivot hinges)
•
Corrosion resistance [EN 13126-9:2013]:
- Grade 4 > 240 hours salt spray test (horizontal pivot hinges)
- Grade 3 > 96 hours salt spray test (vertical pivot hinges)
- Individual zinc die-cast component with bichromating treatment: Grade 5 -
>1,000h salt- spray test [EN 1670, EN 9227 based on EN 13126-1:2011]
•
Sash weight: up to 175kg [EN 13126-9:2013]
•
In accordance with the REACH regulation (1907/2006/EG) regarding SVHC
substances
•
DIN EN ISO 9001:2008
•
Alumil 5 Year Guarantee
EX-4152733702 PIVOT HEAVY DUTY HINGE FOR VERTICAL WINDOWS WHITE
EX-4152733706 PIVOT HEAVY DUTY HINGE FOR VERTICAL WINDOWS BROWN
EX-4152733709 PIVOT HEAVY DUTY HINGE FOR VERTICAL WINDOWS SILVER
EX-4152721202 PIVOT HEAVY DUTY HINGE FOR HORIZONTAL WINDOWS WHITE
EX-4152721206 PIVOT HEAVY DUTY HINGE FOR HORIZONTAL WINDOWS BROWN
EX-4152721209 PIVOT HEAVY DUTY HINGE FOR HORIZONTAL WINDOWS SILVER

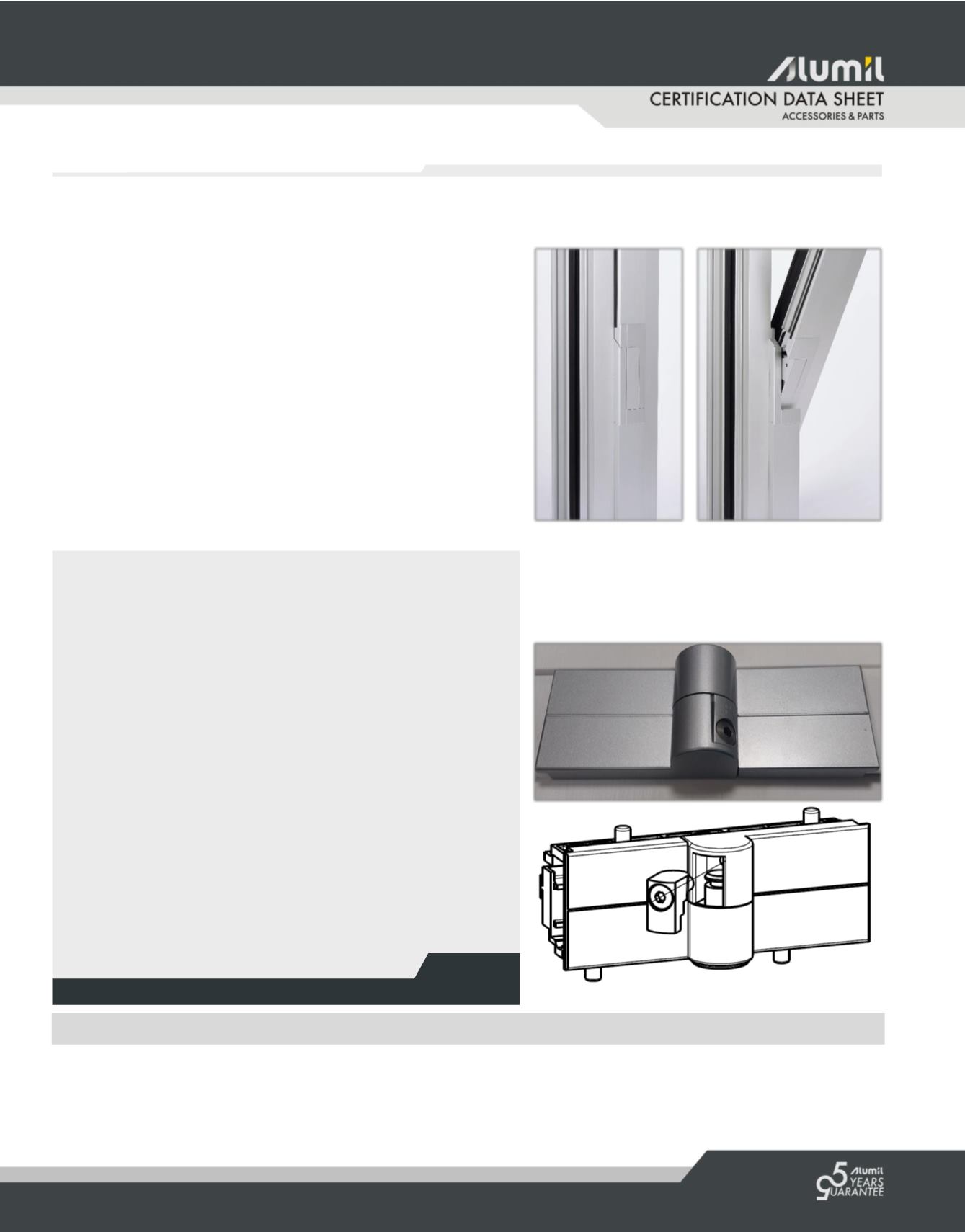

Vertical pivot hinge
