FUNCTION

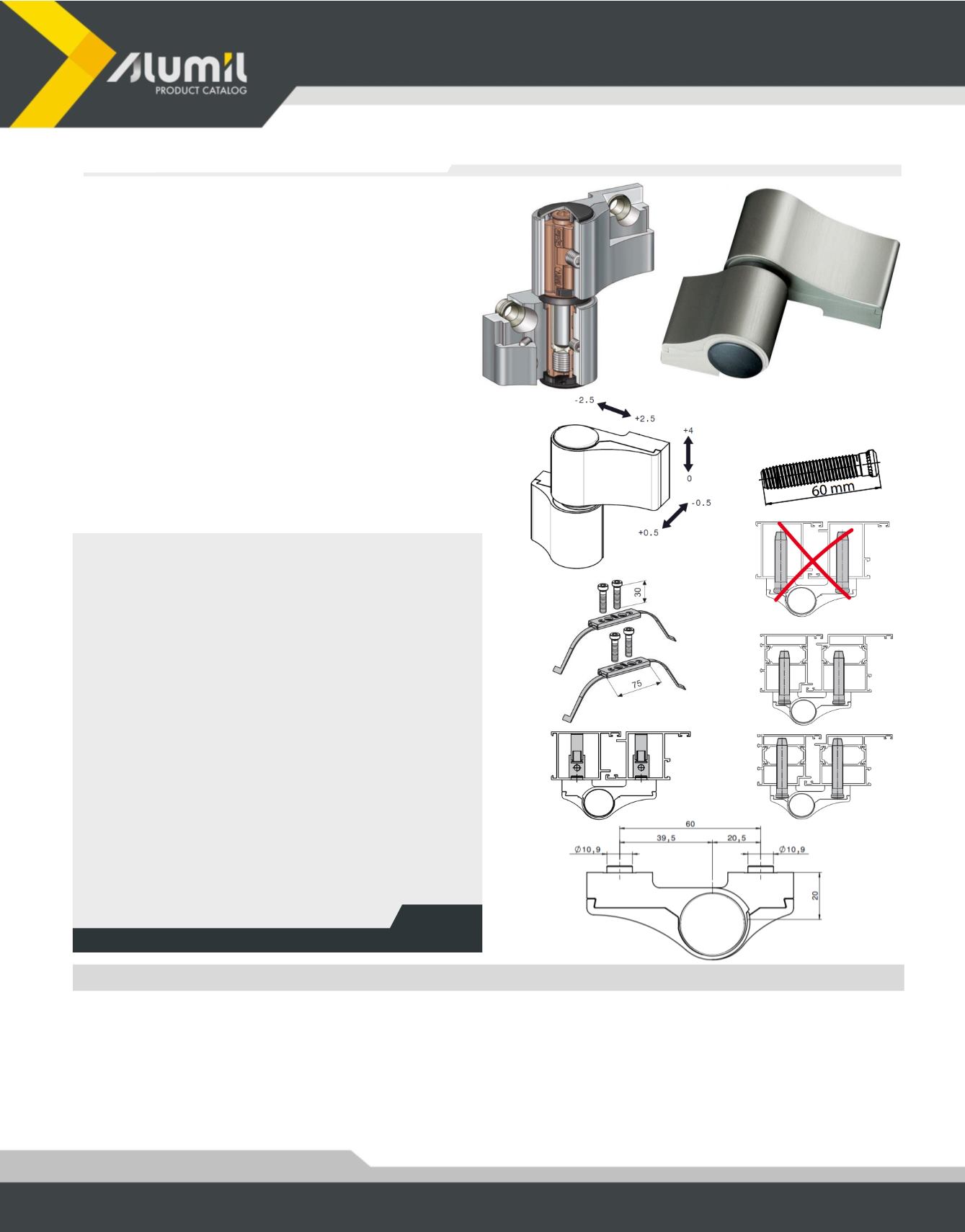

External heavy duty hinges for doors
TECHNICAL FEATURES
•
60mm hole distance for all standard inwards and outwards
opening doors
•
Antitheft system for pin removal
•
Fully independent 3D adjustment (up/down, side to side and
gasket pressure)
•
Weight capacity with two hinges:
- 160kg for residential use
- 145kg for commercial use
- 130kg for commercial use combined with a door closer
- 115kg for commercial use combined with a door closer
and a limitation arm
•
Self-tapping screws for thermally broken profiles available
•
Fixing plates for single wall application available
•
Universal drilling template for all hinges
MATERIALS
•
Full extruded aluminium body
•
Stainless steel pin
•
Nylon caps
•
Zamak bushings
SURFACE COATING
•
White powder coated RAL 9016
•
Black powder coated RAL 9005
•
Silver powder coated RAL 9006
CERTIFICATION
•
Certified according to EN 1935:2004+EC1 2007: Grade 14 hinge
•
Durability:
- Grade 7 - Up to 200.000 cycles
- Individual test: Tested up to 160 Kg - 1.000.000 cycles
•
Sash mass: 160kg
•
Corrosion resistance: Grade 4 - >240hours [EN 1670]
•
Suitable for burglar-proof doors [EN 1627]
•
3 star rating by SKG
•
Alumil 5 Year Guarantee
EX-3607000003 DOUBLE HEAVY DUTY DOOR HINGE FOR FIXING PLATES 60mm BLACK
EX-3607000109 DOUBLE HEAVY DUTY DOOR HINGE FOR FIXING PLATES 60mm SILVER RAL9006
EX-3607000002 DOUBLE HEAVY DUTY DOOR HINGE FOR FIXING PLATES 60mm WHITE
EX-3607000203 DOUBLE HEAVY DUTY DOOR HINGE FOR SELF TAP SCREWS 60mm BLACK
EX-3607000209 DOUBLE HEAVY DUTY DOOR HINGE FOR SELF TAP SCREWS 60mm SILVER RAL9006
EX-3607000202 DOUBLE HEAVY DUTY DOOR HINGE FOR SELF TAP SCREWS 60mm WHITE
EX-3606825000 DRILL JIG FOR DOUBLE HINGES EX-3607000xxx
EX-7626604100 SELF TAP SCREW FOR HINGES EX-3607000xxx
EX-3606620100 FASTENING KIT WITH COUNTER-PLATES FOR HINGES EX-3607000xxx
HEAVY DUTY DOOR HINGES
CODES & DESCRIPTIONS
