FUNCTION

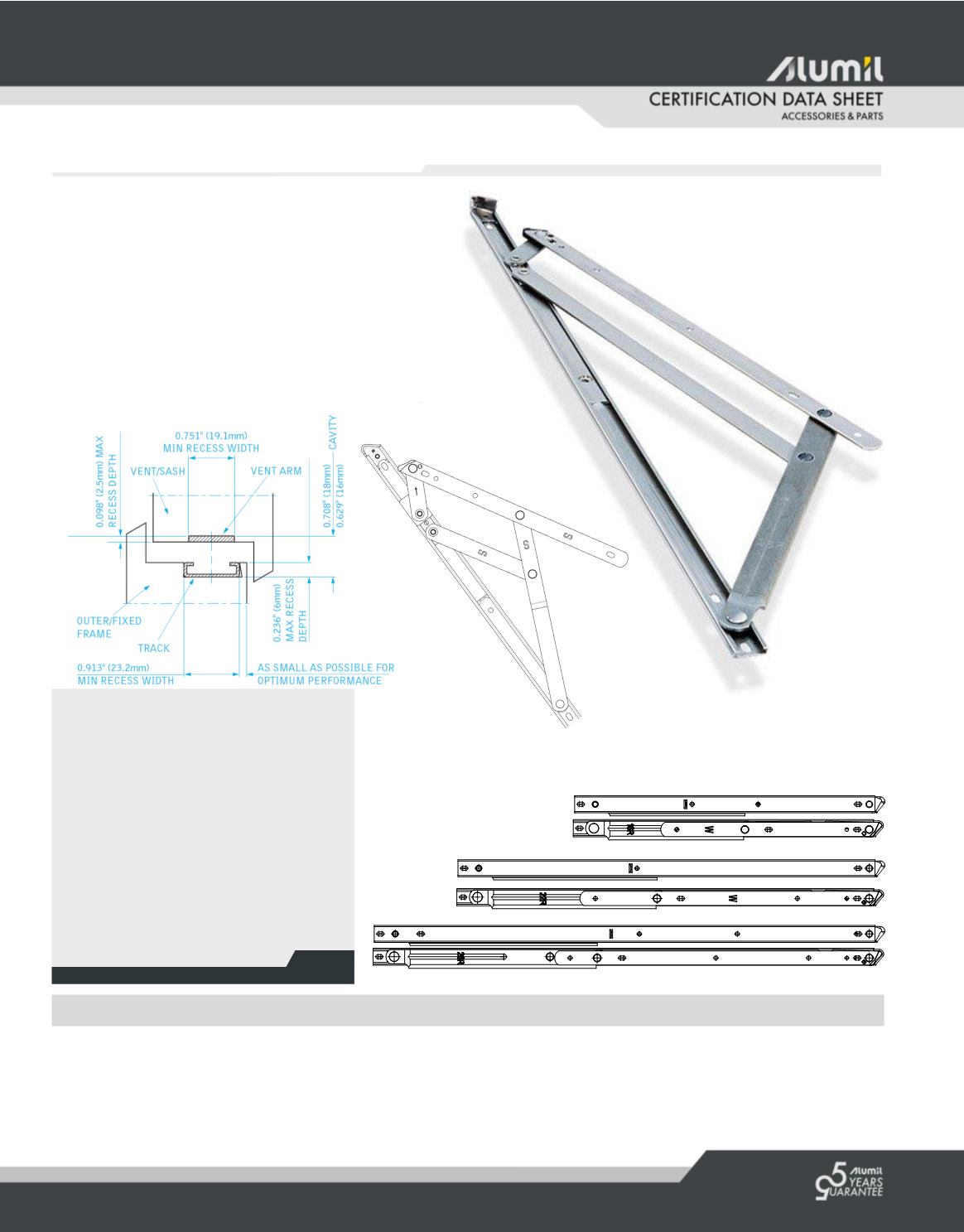

Heavy duty curtain wall window stay arms for all Alumil
systems with flat profiles
TECHNICAL FEATURES
•
Self balancing for smooth opening and closing
•
Tested and certified with the highest standards
•
Anti rubbing composite slider to prevent vent drop
•
From 0.64m to 2.5m height and up to 180kg vent
•
Cam adjustment device should always be used
•
One man on site adjustment even on heavy vents
•
Special endpoint for big gust loads
•
Made in Europe
MATERIALS
•
Full austenitic stainless steel AISI 304
SURFACE COATING
•
Stainless steel / No additional surface coating
CERTIFICATION
•
UK BS 6375
•
AAMA 901.1
•
Singapore Standard 212
•
EN 10088-2 Grade 1.4301
•
ATI (USA) test > 6470pa.
•
Tested for 30.000 cycles
•
Up to 12 Year Guarantee
EX-3505016800
PROJECTION ARM 16" FOR CURTAIN WALL 100kg 640mm<Sh<1100mm 30 DEGREE OPEN
EX-3505122800
PROJECTION ARM 22" FOR CURTAIN WALL 100kg 1100mm<Sh<1500mm 45 DEGREE OPEN
EX-3505122801
PROJECTION ARM 22" FOR CURTAIN WALL 100kg 1500mm<Sh<2000mm 20 DEGREE OPEN
EX-3505126800
PROJECTION ARM 26" FOR CURTAIN WALL 180kg 2000mm<Sh<2500mm 20 DEGREE OPEN
EX-3505072800
SECURY PROJECTION ARM ADJUSTOR
16’’
22’’
26’’
HEAVY DUTY CURTAIN WALL STAY ARMS
CODES & DESCRIPTIONS
