MATERIALS
•
Full austenitic stainless steel AISI 304
•
Nylon shim
•
Nylon alignment wedge
SURFACE COATING
•
Stainless steel / No additional surface coating
CERTIFICATION
•
8000 cycle test
•
AAMA 904-01
•
AAMA 907-05
•
110nm / 220nm force test
•
300h salt-spray
•
Alumil 5 Year Guarantee
FUNCTION
Curtain wall window stay arms for all Alumil systems with flat
profiles
TECHNICAL FEATURES
•
Self balancing with four levers (65, 85kg versions) or six
levers (100, 110, 120, 130kg versions) for smooth opening
and closing
•
Friction block with adjusting screw
•
Anti rubbing composite slider to prevent vent drop
•
From 0.6m to 2m height and up to 130kg vent
•
Cam adjustment device should always be used
•
Special endpoint for big gust loads
•
Nylon snap-in shim to be used between the sash and the
arms’ fastening holes for easier and robust installation
•
Nylon sash support and alignment wedge to properly load
the stay arms when the window is closed
EX-7203250100
PROJECTION ARM FOR CURTAIN WALL 65kg 625mm<Sh<800mm 30/35 DEGREE OPEN
EX-7203250200
PROJECTION ARM FOR CURTAIN WALL 85kg 800mm<Sh<1200mm 25/30 DEGREE OPEN
EX-7203250300
PROJECTION ARM FOR CURTAIN WALL 100kg 1200mm<Sh<1400mm 25/30 DEGREE OPEN
EX-7201325000
PROJECTION ARM FOR CURTAIN WALL 110kg 1400mm<Sh<1600mm 20/25 DEGREE OPEN
EX-7203250600
PROJECTION ARM FOR CURTAIN WALL 120kg 1600mm<Sh<1800mm 15/20 DEGREE OPEN
EX-7200325000
PROJECTION ARM FOR CURTAIN WALL 130kg 1800mm<Sh<2000mm 15/20 DEGREE OPEN
EX-3800325600
SHIM FOR 15/20 SASHES FOR PROJECTING-OUT WINDOW STAY ARMS
EX-4161613000
ALIGNMENT WEDGE AND WEIGHT SUPPORT FOR SASH
EX-7200325500
PROJECTION ARM ADJUSTOR

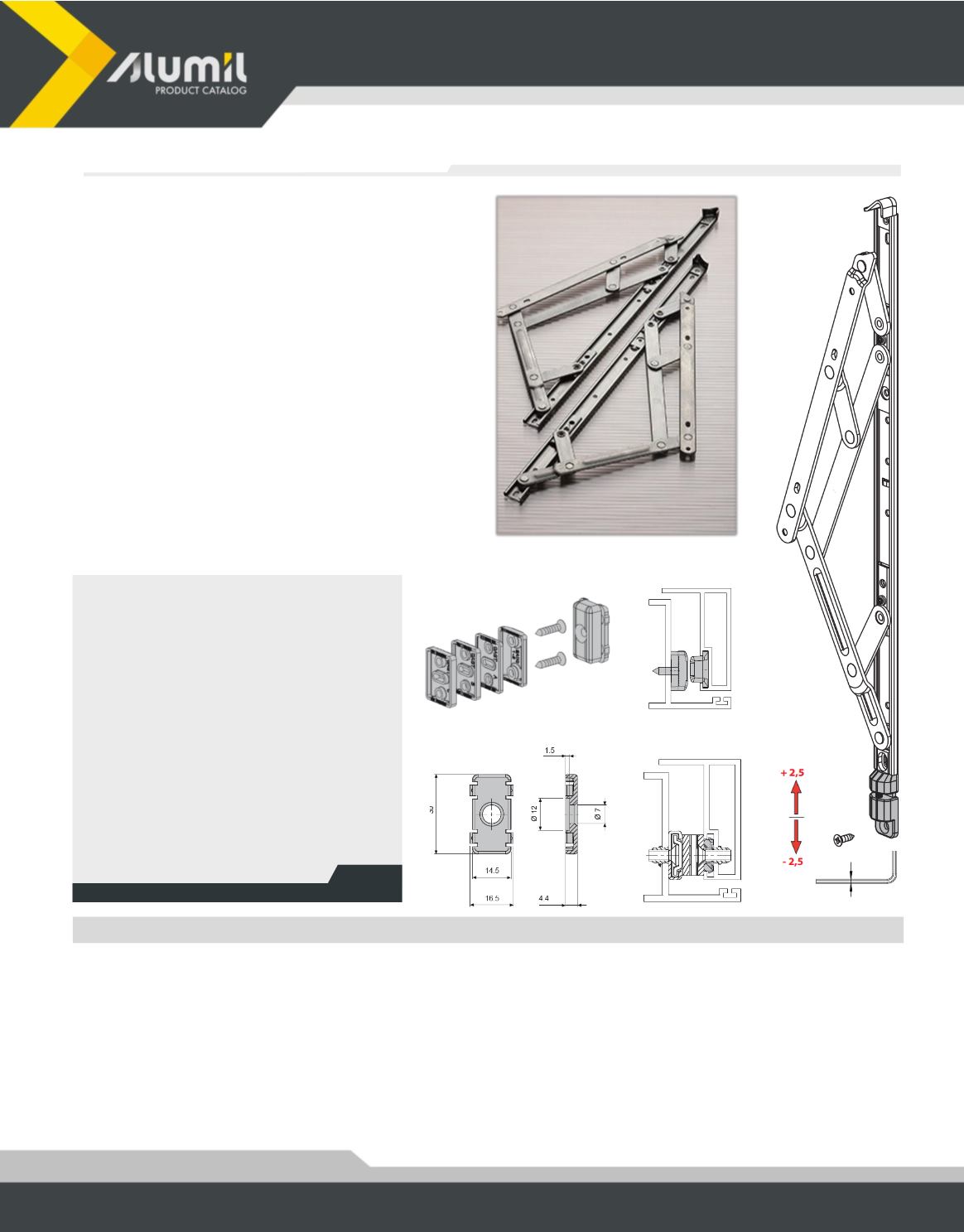

STANDARD CURTAIN WALL STAY ARMS
CODES & DESCRIPTIONS
Support-alignment wedge
Arm
adjustor
Installation shim
