MATERIALS
•
Galvanized rod
•
PVC coating
SURFACE COATING
•
White RAL 9016
•
Black
•
Silver
CERTIFICATION
•
Burglary resistant locking certified by SKG
•
Alumil 5 Year Guarantee
EX-4251659100
GALVANIZED ROD 8mm FOR LEVER SKYLIGHT MECHANISM L=3000mm
EX-4254016602
MANUAL HOPPER SKYLIGHT MECHANISM L:3000mm WHITE
EX-4253037300
MANUAL STAY ARM FOR LEVER SKYLIGHT MECHANISM SILVER
EX-4254016702
MANUAL HOPPER SKYLIGHT MECHANISM L:4500mm WHITE
EX-4253037702
MANUAL STAY ARM FOR LEVER SKYLIGHT MECHANISM WHITE
EX-4254016802
MANUAL HOPPER SKYLIGHT MECHANISM L:6000mm WHITE
EX-4257450903
MANUAL STAY ARM FOR LEVER SKYLIGHT MECHANISM BLACK
EX-4254017103
MANUAL HOPPER SKYLIGHT MECHANISM L:3000mm BLACK
EX-4253040002
COVER PROFILE FOR LEVER SKYLIGHT MECHANISM L=3000mm WHITE
EX-4254017203
MANUAL HOPPER SKYLIGHT MECHANISM L:4500mm BLACK
EX-4257453903
COVER PROFILE FOR LEVER SKYLIGHT MECHANISM L=3000mm BLACK
EX-4254017303
MANUAL HOPPER SKYLIGHT MECHANISM L:6000mm BLACK
EX-4253039609
COVER PROFILE FOR LEVER SKYLIGHT MECHANISM L=3000mm SILVER
EX-4253061100
HANDLE & CORNER TRANSIMISSION FOR LEVER SKYLIGHT MECHANISM SILVER EX-4253724300
MANUAL CRANK SKYLIGHT MECHANISM 2000N 310mm STROKE
EX-4253061502
HANDLE & CORNER TRANSIMISSION FOR LEVER SKYLIGHT MECHANISM WHITE EX-4253724400
CRANK FOR MANUAL SKYLIGHT MECHANISM L:1500mm
EX-4257794503
HANDLE & CORNER TRANSIMISSION FOR LEVER SKYLIGHT MECHANISM BLACK EX-4254000300
CRANK FOR MANUAL SKYLIGHT MECHANISM L:3000mm

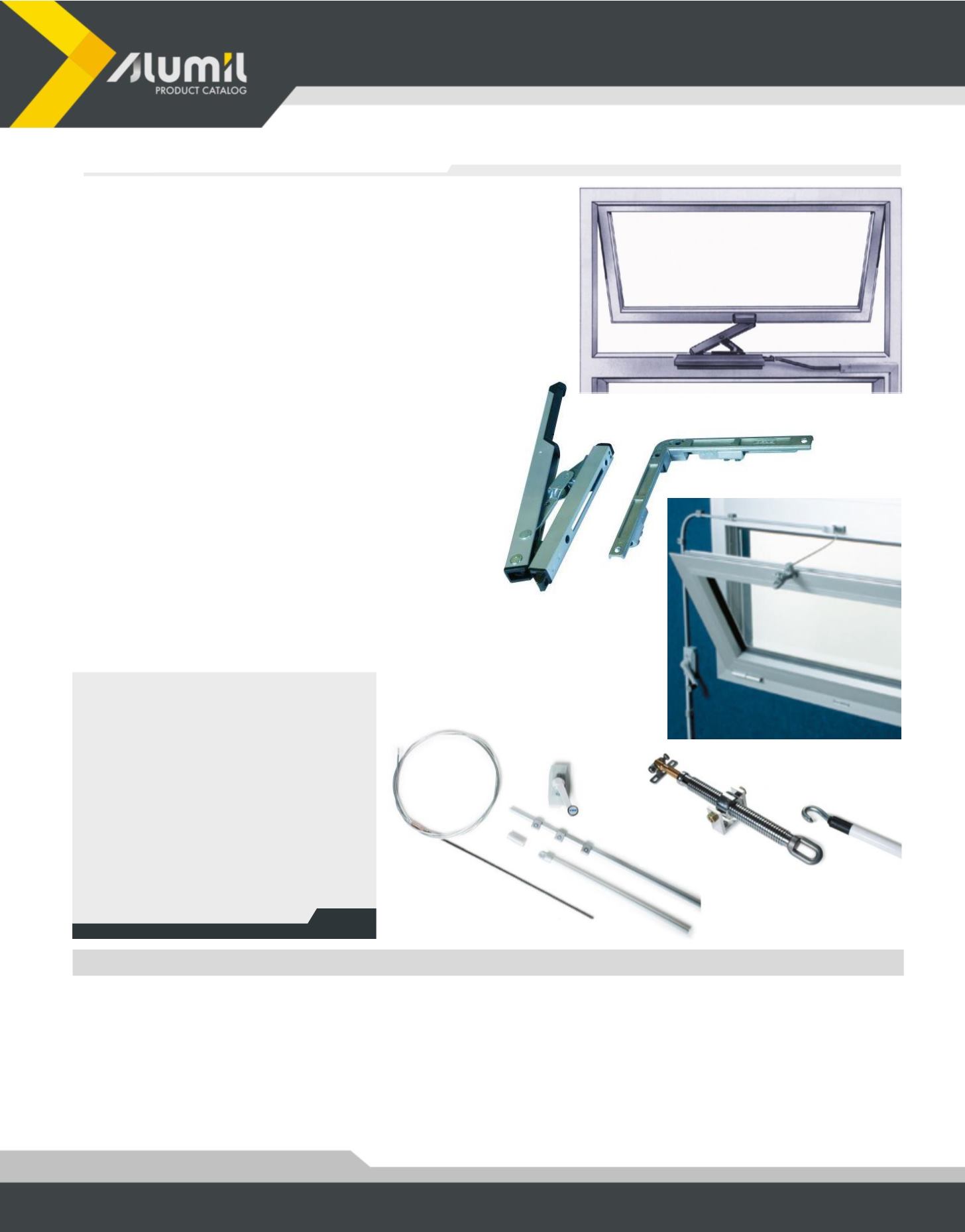

MANUAL SKYLIGHT MECHANISM
CODES & DESCRIPTIONS
Lever mechanism
Hopper mechanism
Crank mechanism
47
FUNCTION
Manual skylight mechanism for inwards and outwards opening windows
TECHNICAL FEATURES
•
Lever mechanism
- Opening width of 170 mm
- Easy to use with large lever mechanism to ensure sturdy closing
- Easy installation: scissors and rods can be installed from the front
- Secure casement locking due to locking integrated in scissors
- Convenient window cleaning from inside and outside due to easy
scissor disengagement
- Projecting and tilting windows
•
Hopper mechanism
- Suitable for single bottom hinged windows up to 1.5m width
- Quick and easy installation. The conduit preparation tool is not
required.
- Maximum opening 250mm; the kit is provided with already cut
spent travel tube
- The small section of the conduit allows only 50mm radius bend: it
is usually possible to install the conduit on the window frame
•
Crank mechanism
- Suitable for operating skylights and domes up to 2000N weight
- Maximum stroke 310mm
- Complete bracket set included
- Operation by crank handle
