MATERIALS
•
Full metal / aluminium body
•
10mm square metal rack
SURFACE COATING
•
Silver anodized
CERTIFICATION
•
TÜV NUM: KH 00.1.2 (RACK)
•
Smoke and heat extraction UNI EN 12101-2 (RACK)
•
Institute Giordano Approved
•
CE 2004/108
•
Alumil 2 Year Guarantee (as electrical part)
EX-4254021100
ELECTRIC LINEAR ACTUATOR RACK 230V 650N IN 350N OUT 350mm STROKE
EX-4254101302
DOUBLE FLUSH SWITCH FOR 230V MOTORS WHITE
EX-4254176700
ELECTRIC LINEAR SPINDLE ACTUATOR ULYSSES 24VDC 650Ν 180mm STROKE OUTDOOR USE SILVER ANODISED
EX-4724020411
ELECTRIC LINEAR SPINDLE ACTUATOR FORCE 24VDC 1000N 500mm STROKE
EX-4724020500
REDUCING STROKE KIT FOR LINEAR MOTOR FORCE
EX-4253569700
LOWMOUNT FOR LINEAR MOTOR ULYSSES
EX-4254055800
FLUSH BIPOLAR PUSH BUTTON FOR LINEAR MOTORS ULYSSES / FORCE 24V
EX-4254077500
POWER SUPPLY 24V DC, MAX 3A 199x99x50mm FOR LINEAR MOTORS ULYSSES / FORCE
EX-4350010000
WIRELESS KIT FOR LINEAR MOTORS ULYSSES / FORCE (CHIP + 2 REMOTES)
VOLTAGE SUPPLY
230 Vca
±
10%
ELECTRIC CONNECTION
3 wires + earth
FORCE IN PUSH/PULL ACTION 650 N / 350N
STROKE
350 mm
SPEED
~8 mm/s
CURRENT ABSORPTION (max load) 0.1 A
PARALLEL CONNECTION
YES
LIMIT STOP
electronic
SAFETY STOP
electronic
PROTECTION CLASS
IP 55
COLOUR
silver anodized
VOLTAGE SUPPLY
24 Vcc
±
10%
ELECTRIC CONNECTION
2 wires
OPERATION
by polarity inversion
STROKE
180mm
FORCE (in push and pull action)
650 N
SPEED
6 mm/s
CURRENT ABSORPTION (max load) ~ 1 A
PARALLEL CONNECTION
YES
LIMIT STOP
electronic
SAFETY STOP
electronic
PROTECTION CLASS
IP 65
VOLTAGE SUPPLY
24 Vcc
±
10%
ELECTRIC CONNECTION
2 wires
OPERATION
by polarity inversion
STROKE
500mm
FORCE (in push and pull action)
1000 N
SPEED
~6 mm/s
CURRENT ABSORPTION (max load) ~ 1,4 A
PARALLEL CONNECTION
YES
LIMIT STOP
electronic
SAFETY STOP
electronic
PROTECTION CLASS
IP 65
Force
Ulysses

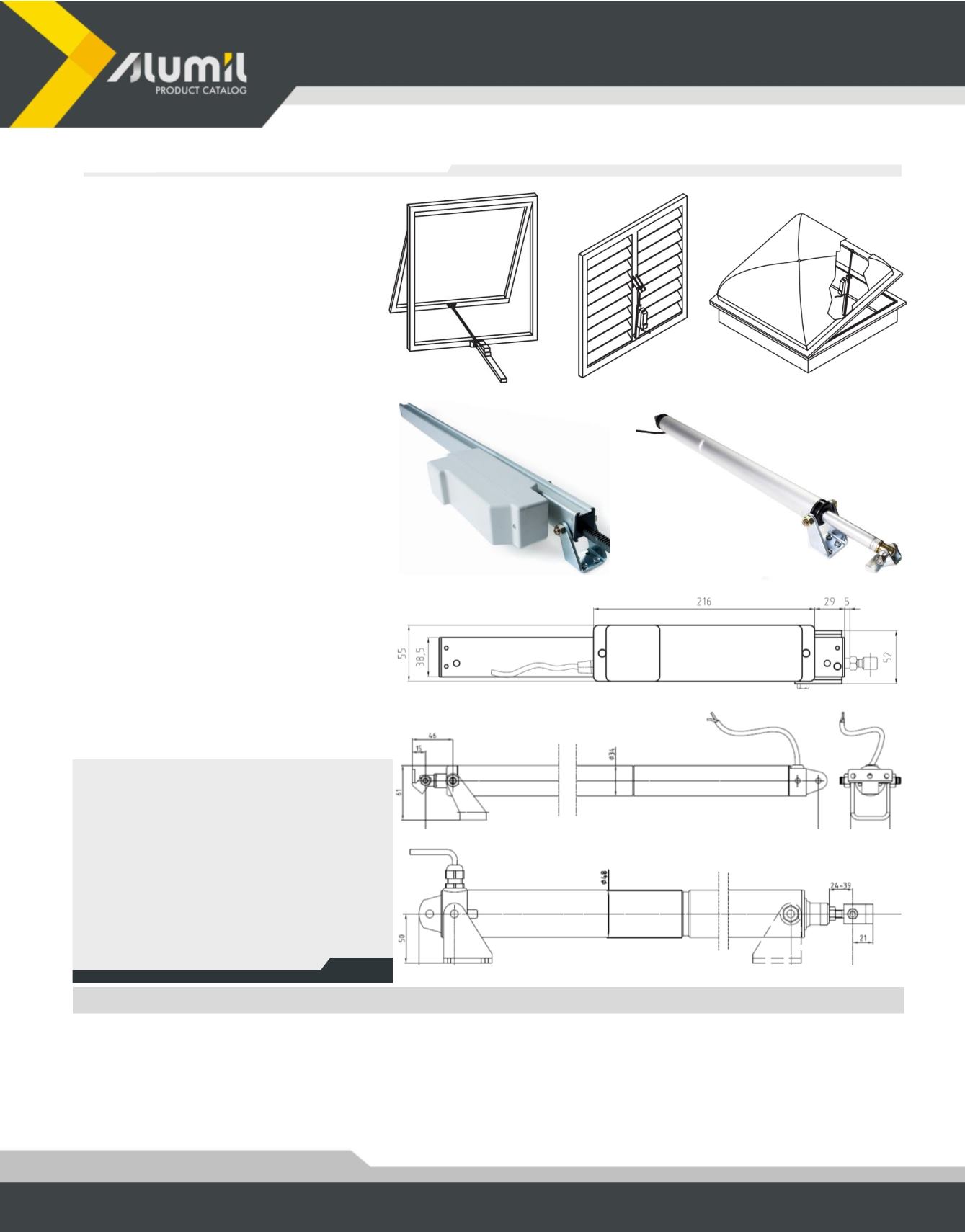

LINEAR MOTORS
CODES & DESCRIPTIONS
45
Rack
FUNCTION
Electric linear motors for multiple interior and exterior uses
TECHNICAL FEATURES
RACK
ULYSSES
FORCE
