FUNCTION

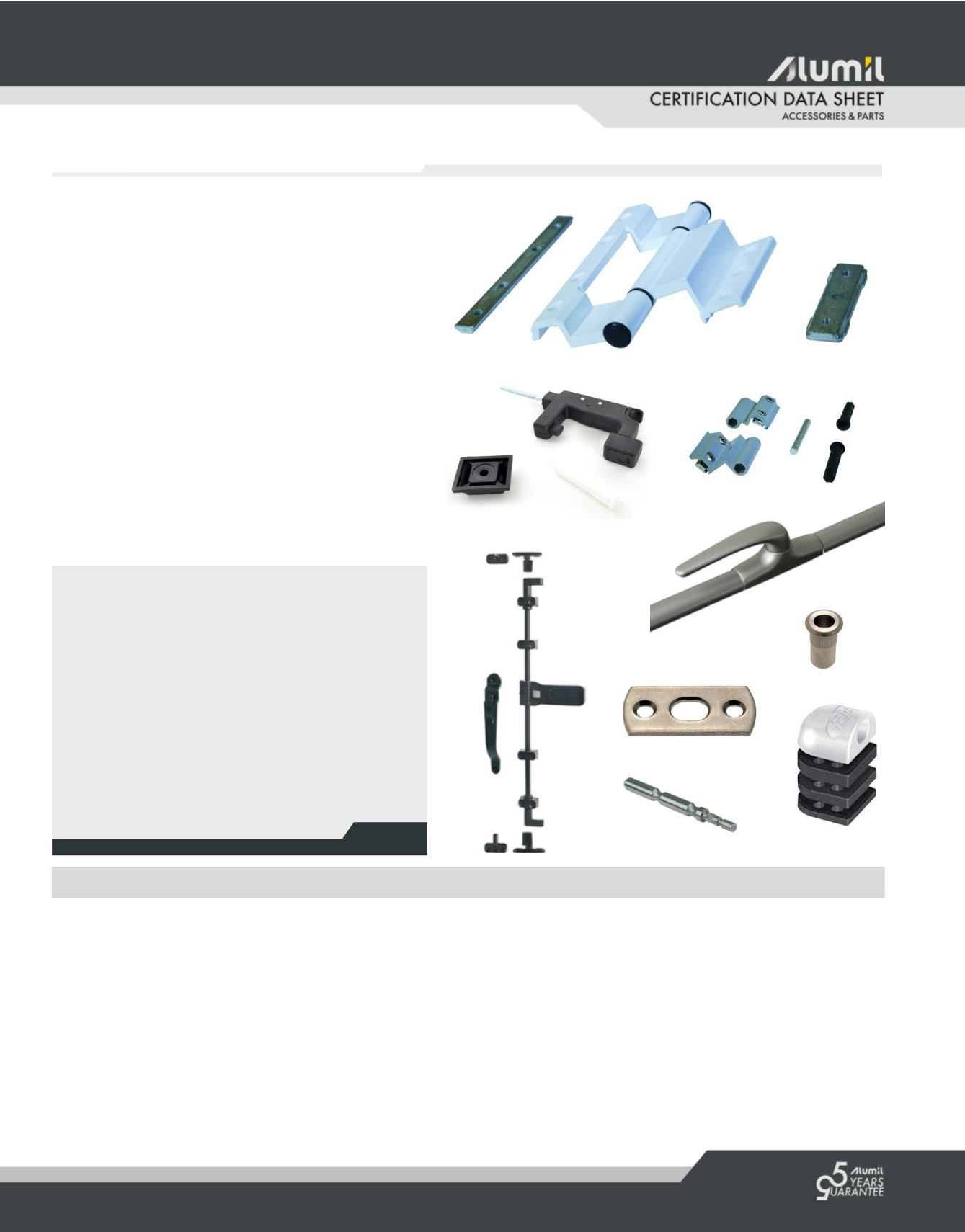

Shutter accessories to fit Alumil opening shutter systems
TECHNICAL FEATURES
•
Perfect fit for Alumil 9400 shutter systems
•
Shutter hinges in all sizes to accommodate all wall
thicknesses
•
Shutter hinge size refers to dimension when hinge is fully
open (total wall width after the frame)
•
Tested for 80kg per sash, 3 hinges to be used in large
openings
•
Folding shutter hinges for 3 and 4 sash typologies allows
for the outer sash to fold flush on top of the inner one
•
Shutter wall holders to prevent shutters from closing under
wind loads
•
Shutter mechanisms with external or internal rods
•
Internal rod mechanism works with handle cremone
•
Internal rod mechanism has flat and deep keepers available
•
External rod mechanism works with lever
•
Shutter mechanisms with top and bottom locking points
•
Rods are cut to length
MATERIALS
•
Extruded aluminium main body for hinges
•
Polyamide stops
•
Polyamide bushings
•
Galvanized pin
•
Galvanized fixings
SURFACE COATING
•
White powder coating RAL 9016
•
Black powder coating RAL 9005
•
Mill finish / Special colors upon request
CERTIFICATION
•
Alumil 5 Year Guarantee
EX-4260189302 ZAMAK KEEPERWITH SHIMS WHITE
EX-4260189303 ZAMAK KEEPERWITH SHIMS BLACK
EX-4260189500 STAINLESS STEEL DEEP KEEPER
EX-3801893800 STAINLESS STEEL FLAT KEEPER
EX-4260189200 STAINLESS STEEL ROD END STRAIGHT
EX-4261892000 STAINLESS STEEL ROD END OFF SET
EX-4261889002 CONNECTING ROD AND CASING 1400mmWHITE
EX-4261889003 CONNECTING ROD AND CASING 1400mm BLACK
EX-4261889100 CONNECTING ROD AND CASING 1000mmMILL FINISHED
EX-4261889102 CONNECTING ROD AND CASING 1000mmWHITE
EX-4261889103 CONNECTING ROD AND CASING 1000mm BLACK
EX-4260187200 GEARED SHUTTER HANDLE MILL FINISH
EX-4260187202 GEARED SHUTTER HANDLE WHITE
EX-4260187203 GEARED SHUTTER HANDLE BLACK
EX-4260802002 KIT FOR SHUTTER ROD ACCESSORIES AL800 WHITE
EX-4260802003 KIT FOR SHUTTER ROD ACCESSORIES AL800 BLACK
EX-3501010002 HINGE FOR FOLDING SHUTTERWHITE
EX-3501010003 HINGE FOR FOLDING SHUTTER BLACK
EX-3701005202 LARGE HINGE SHUTTERS EUROPEAN GROOVE 52mmWHITE
EX-3701005203 LARGE HINGE SHUTTERS EUROPEAN GROOVE 52mm BLACK
EX-3701009702 LARGE HINGE SHUTTERS EUROPEAN GROOVE 97mmWHITE
EX-3701009703 LARGE HINGE SHUTTERS EUROPEAN GROOVE 97mm BLACK
EX-3701014202 LARGE HINGE SHUTTERS EUROPEAN GROOVE 140mmWHITE
EX-3701014203 LARGE HINGE SHUTTERS EUROPEAN GROOVE 140mm BLACK
EX-3701018202 LARGE HINGE SHUTTERS EUROPEAN GROOVE 178mmWHITE
EX-3701018203 LARGE HINGE SHUTTERS EUROPEAN GROOVE 178mm BLACK
EX-3701022002 LARGE HINGE SHUTTERS EUROPEAN GROOVE 220mmWHITE
EX-3701022003 LARGE HINGE SHUTTERS EUROPEAN GROOVE 220mm BLACK
