FUNCTION

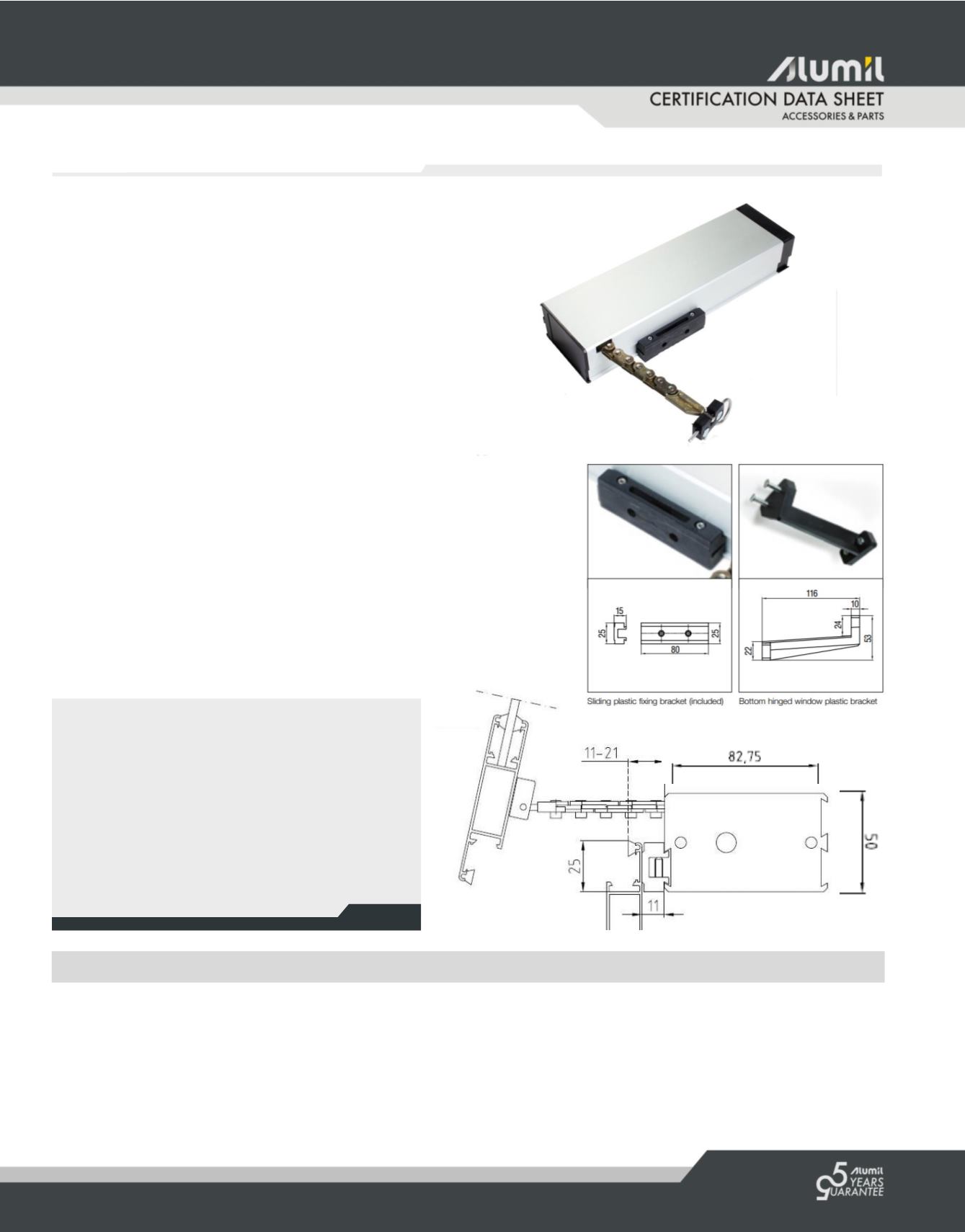

Electric chain actuator for opening, top hung and bottom hung
windows in hard to reach interior areas
TECHNICAL FEATURES
•
Two selectable strokes: 250 and 380mm
•
Three dovetail slides for an easy installation; the sliding bracket is
included in the package
•
Special removable plug allows a very quick and easy connection
•
For installation on top hinged windows select the 250mm
•
Minimum window height: 500mm with 250mm stroke, 800mm
with 380mm stroke
MATERIALS
•
Full metal body
SURFACE COATING
•
White powder coating RAL 9010
•
Black anodized
•
Silver anodized
CERTIFICATION
•
Alumil 2 Year Guarantee (as electrical part)
VOLTAGE SUPPLY
230 Vca ± 10%
ELECTRIC CONNECTION
3 wires + earth
STROKE
selectable 250/380mm
FORCE IN PUSH ACTION (stroke)
80 N (250mm) - 90 N (380mm)
FORCE IN PULL ACTION
300 N
SPEED
~40 mm/s
CURRENT ABSORPTION (with max load)
0.65 A
PARALLEL CONNECTION
YES
LIMIT STOP
micro switches
SAFETY STOP
thermic
FEEDBACK SIGNAL
close
PROTECTION CLASS
IP 20
EX-4254031600
ELECTRIC CHAIN ACTUATOR 230V BOTTOM/TOP HUNG 250/380mm STROKE WHITE
EX-4254031403
ELECTRIC CHAIN ACTUATOR 230V BOTTOM/TOP HUNG 250/380mm STROKE BLACK ANODIZED
EX-4254031300
ELECTRIC CHAIN ACTUATOR 230V BOTTOM/TOP HUNG 250/380mm STROKE SILVER ANODIZED
EX-4253666500
PLASTIC MOUNTING ACCESSORY FOR ELECTRIC CHAIN ACTUATOR 230V
EX-4254101302
DOUBLE FLUSH SWITCH FOR 230V MOTORS WHITE
CHAIN ACTUATORS
CODES & DESCRIPTIONS
