MATERIALS
•
Arm in stainless steel AISI 304
•
Slider in polyamide and AISI 304 grade stainless steel
SURFACE COATING
•
Stainless steel / No additional surface coating
CERTIFICATION
•
Durability: Grade 5 - 25.000 cycles [EN 13126‐6: 2009]
•
Corrosion resistance: Grade 5 - 480 h [EN 1670]
•
Alumil 5 Year Guarantee
FUNCTION
Friction stay arms for all top-hung Alumil systems with euro
groove profiles. Small arms are also applicable to side-hung
configurations
TECHNICAL FEATURES
•
Asymmetrical upper part for enhanced return and
closing of the sash
•
Specially shaped to be self-locating in the sash-side
15/20 groove for easy mounting
•
Secures to the sash with a pre-installed grub screw
•
The arm mounts to the frame (with 14/18 groove) with
self-tapping screws (not included)
•
Polyamide filling shim as spacer for solid and durable
mounting to the frame
•
For sashes with height up to 2000mm, width up to
1700mm and weight up to 100kg
•
10” and 16” stay arms are also applicable to side hung
outward opening windows
EX-4008349000 TOP HUNG ARM 10" EURO GROOVE 50KG 50 DEGREE OPEN
EX-4008350000 TOP HUNG ARM 16" EURO GROOVE 55/100KG 50/30 DEGREE OPEN
EX-4008351000 TOP HUNG ARM 22" EURO GROOVE 80/100KG 45/20 DEGREE OPEN
EX-4008352000 TOP HUNG ARM 28" EURO GROOVE 100KG 15 DEGREE OPEN
EX-4000197100 SHIM FOR 14/18 FRAMES FOR PROJECTING-OUT WINDOW STAY ARMS

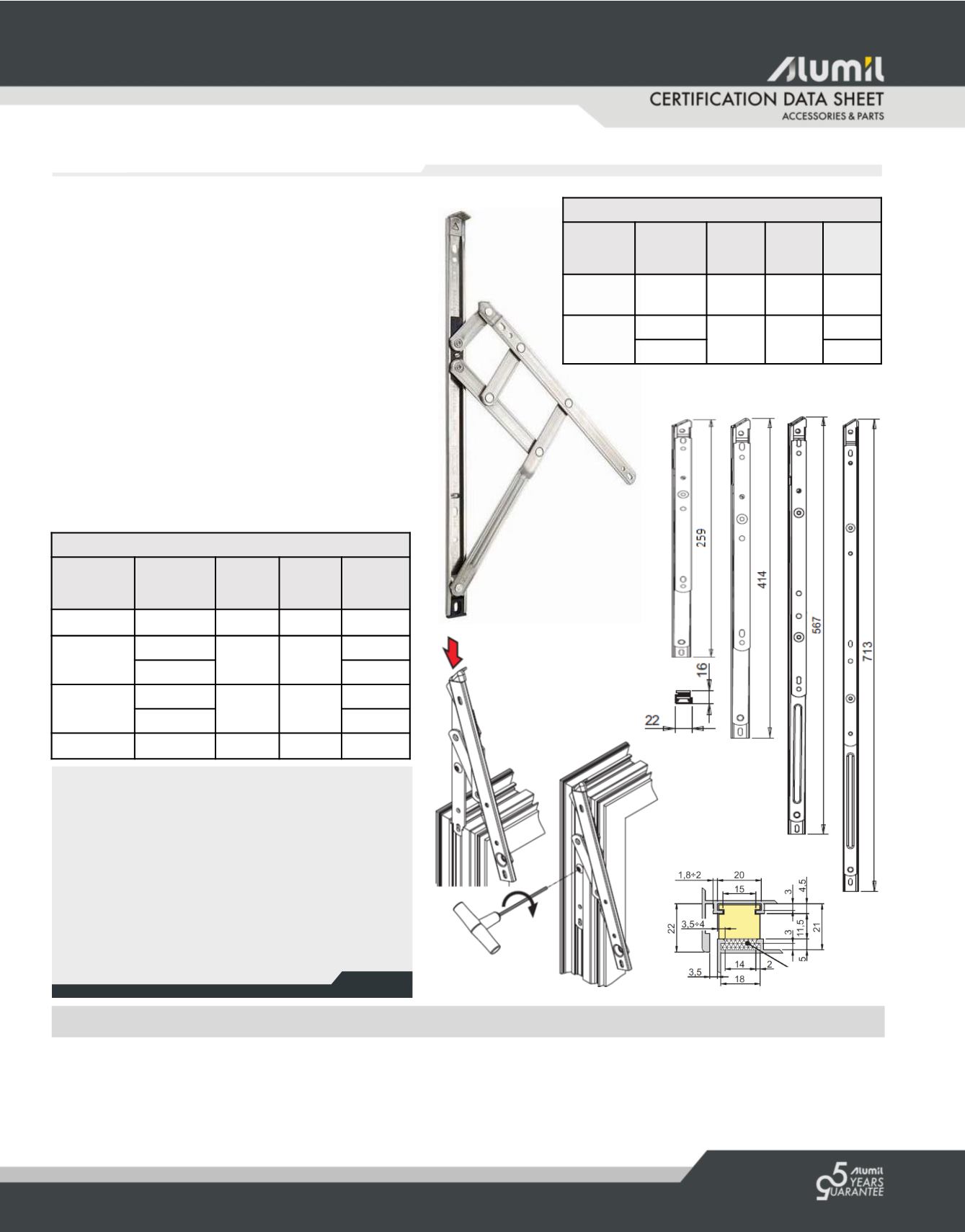

EURO GROOVE STAY ARMS
CODES & DESCRIPTIONS
24
Side hung configuration
Arm
length
(inch/mm)
Maximum
opening
angle
Max
height
(mm)
Max
width
(mm)
Max
weight
(kg)
10/259
50°/84°
1500
650
35
16/414
30°
1600
700
60
50°/90°
42
Top hung configuration
Arm length
(inch/mm)
Maximum
opening
angle
Max
height
(mm)
Max
width
(mm)
Max
weight
(kg)
10/259
50°
650
1500
50
16/414
30°
800
1500
100
50°
55
22/567
20°
1500
1700
100
45°
80
28/713
15°
2000
1700
100
