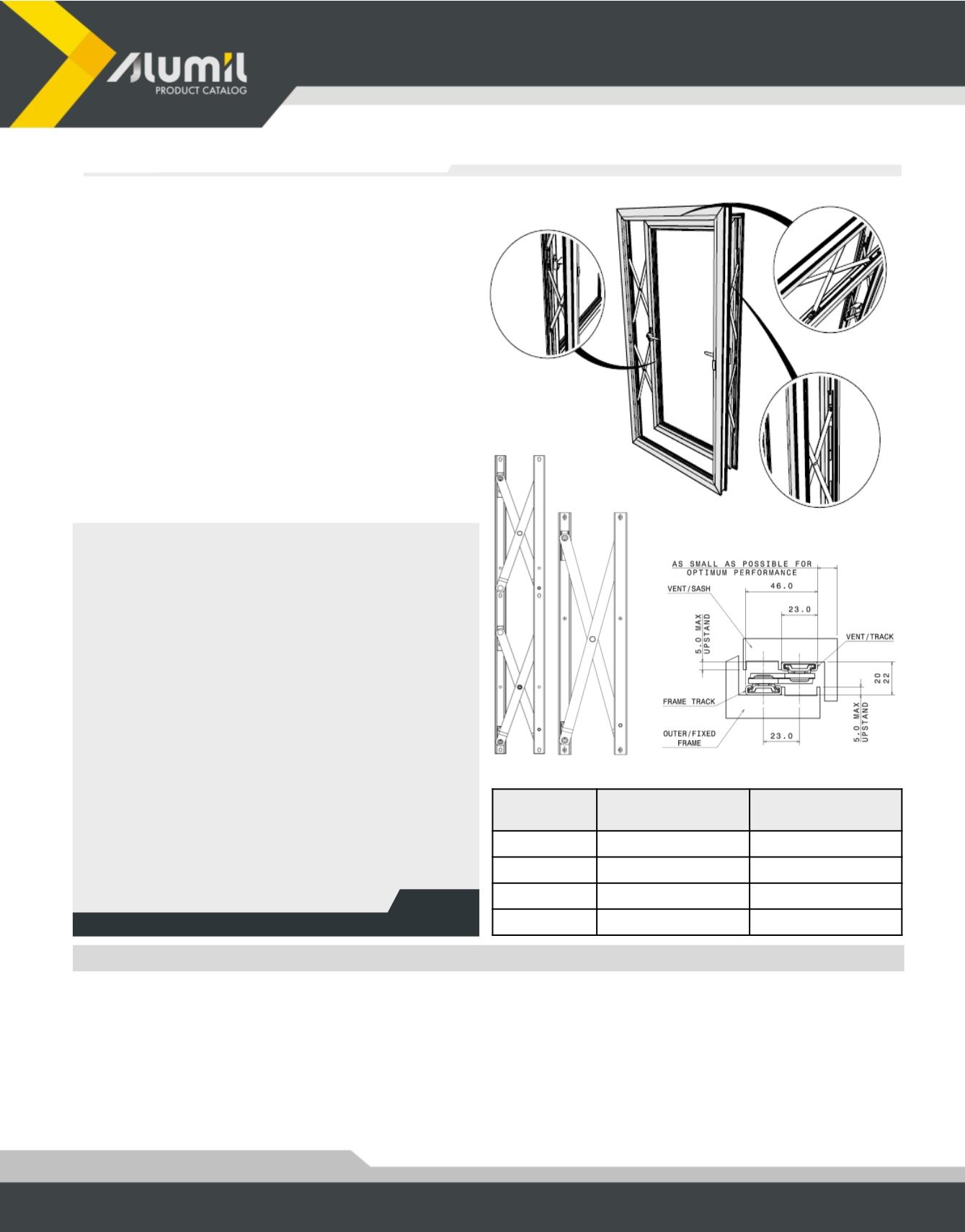

HEAVY DUTY PARALLEL PROJECTION CURTAIN WALL STAY ARMS
23
MATERIALS
•
Grade 1.4301 stainless steel links, track and inner slider [EN
10088-2]
•
Grade 1.4567 stainless steel pivots [EN 10263-5]
•
Zytel HTN FE8200 NC010 outer slider
•
Nylon pivot washer
•
Zinc alloy ZA5 pivot blocks
•
Phosphor Bronze PB102 bush
SURFACE COATING
•
Cold rolled finish stainless steel
•
Plastic components are of uniform finish and color
•
Die cast components are finished with copper nickel chrome
plating
CERTIFICATION
•
Durability: Tested to operate for 20,000 cycles
•
Corrosion resistance: 500h neutral salt spray test [EN ISO 9227]
•
Capable of achieving the requirements for natural smoke and
heat exhaust ventilators [EN 12101-2:2003]
•
AAMA 901.1
•
Up to 12 Year Guarantee
FUNCTION
A high performance parallel opening hinge range for curtain wall
and structurally glazed windows
TECHNICAL FEATURES
•
Provide ultimate natural ventilation by allowing a balanced air
flow around the entire opening
•
Maintaining aesthetically pleasing sightlines for modern
facade design
•
From 0.35m to 3.0m height, 0.25m to 2.0m width and up to
200kg vent
•
Can be connected to a building management system as part of
an automated solution for climate control
•
Can be operated manually or using electric actuators
•
Unique patented parallelism adjustment
•
Patented synchronization method on larger hinge sizes
•
Sash adjustment feature for use with heavier vents
•
Hinge mechanism is fully concealed when the sash is closed
•
High resistance to corrosion
CODES & DESCRIPTIONS
EX-7200035000
PARALLEL PROJECTION ARM 100kg 350mm 400<Sh<750 RIGHT
EX-7200035010
PARALLEL PROJECTION ARM 100kg 350mm 400<Sh<750 LEFT
EX-7200045000
PARALLEL PROJECTION ARM 100kg 450mm 750<Sh<1000 RIGHT
EX-7200045010
PARALLEL PROJECTION ARM 100kg 450mm 750<Sh<1000 LEFT
EX-7200070000
PARALLEL PROJECTION ARM 200kg 670mm 1000<Sh<1500 RIGHT
EX-7200070010
PARALLEL PROJECTION ARM 200kg 670mm 1000<Sh<1500 LEFT
EX-7200095000
PARALLEL PROJECTION ARM 200kg 950mm 1500<Sh<2000 RIGHT
EX-7200095010
PARALLEL PROJECTION ARM 200kg 950mm 1500<Sh<2000 LEFT
EX-4156239100
LOCKING PLATES FOR PARALLEL PROJECTION
Hinge
Max. Manual
Opening Motion (mm)
Max. Motorized
Opening Motion (mm)
EX-72000350xx
150
180
EX-72000450xx
150
250
EX-72000700xx
150
150
EX-72000950xx
150
250
